Описание

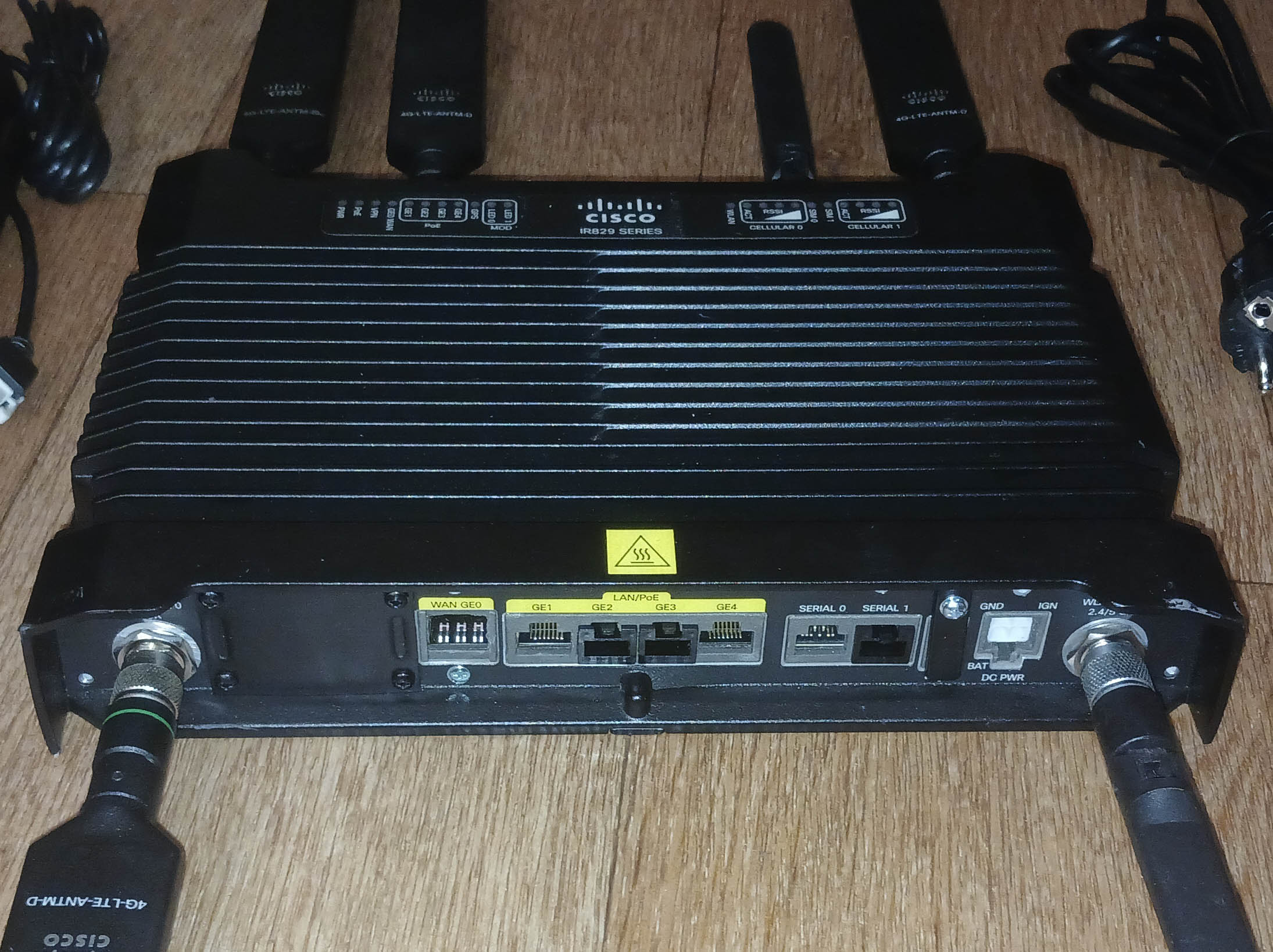

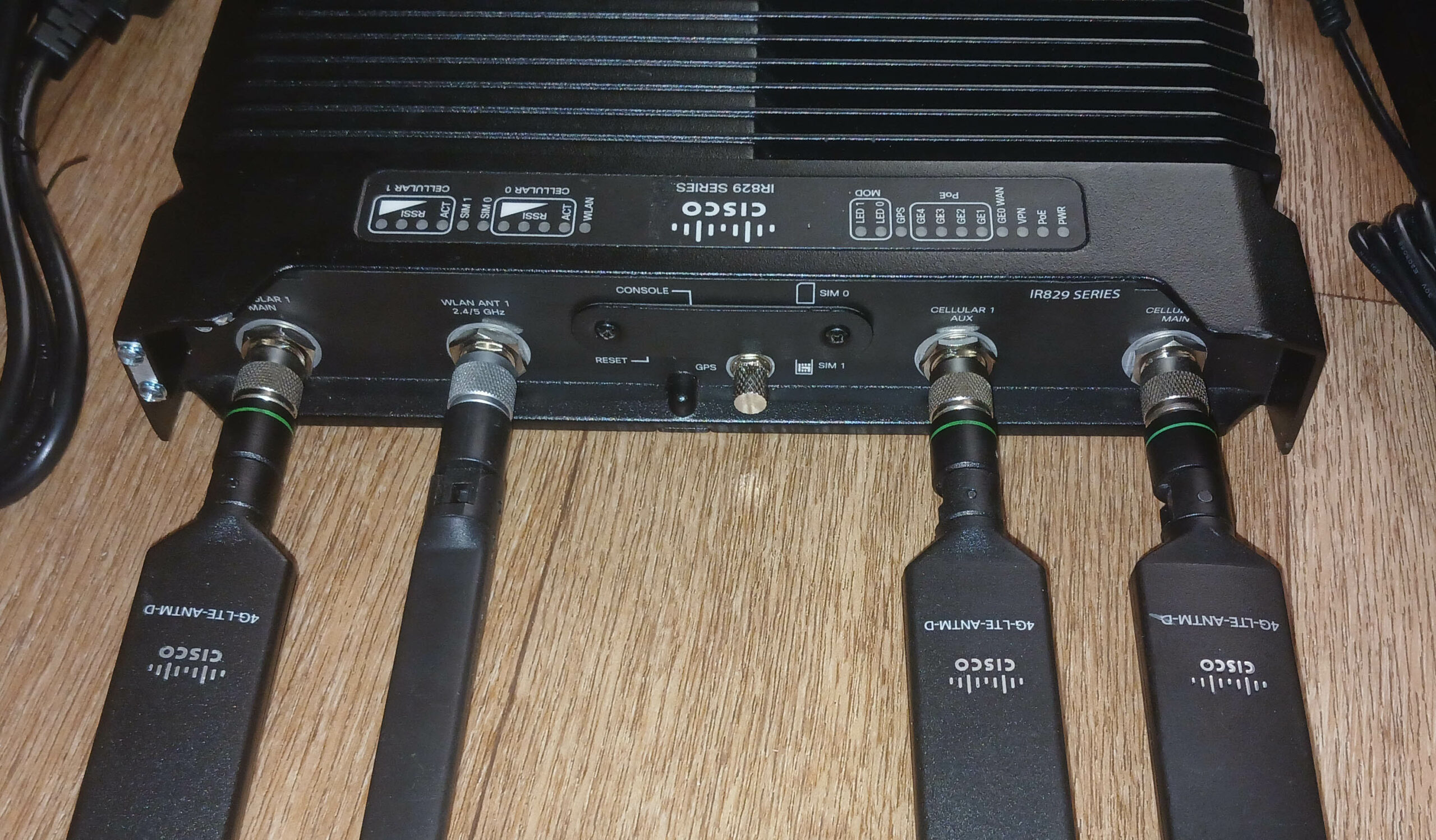

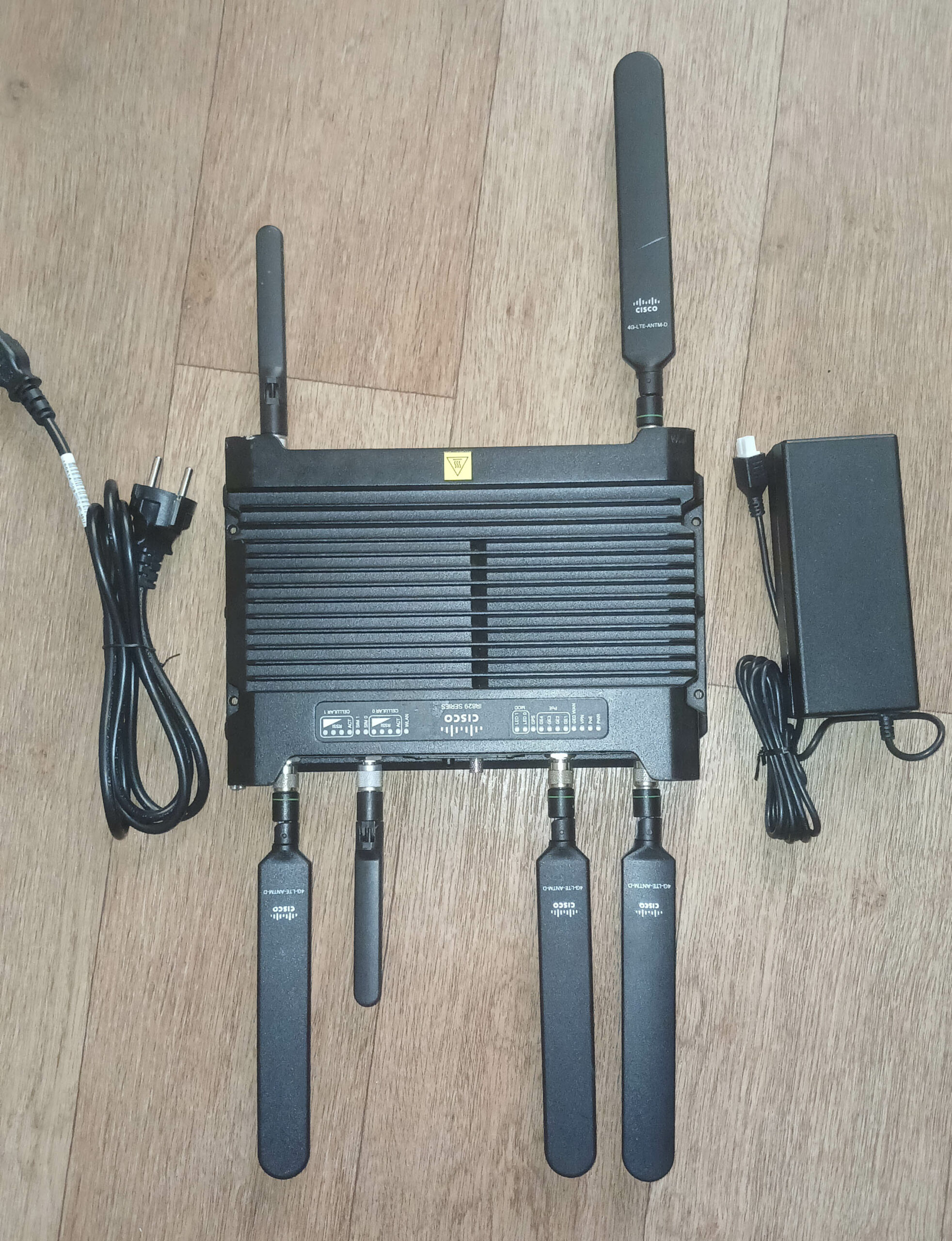

Cisco IR829GW-LTE-NA-AK9 + SFP GLC-TE + 2xLTE-ANTM-D + 4xAIR-ANT2542DG-R + PSU
Заменен встроенный модем MC7354 на MC7304, так как MC7354 не работает в мобильных сетях Украины.
Default and maximum DRAM:
2Gb
Default and maximum flash memory:
8 GB eMMC (4GB usable)
SSD storage:
100 GB (IR-SSD-MSATA-100G) and 50 GB (IR-SSD-MSATA-50G) option on IR829M
Console:
Mini type-B: also supports remote 4G LTE diagnostics and monitoring tools
WAN interface:
Wireless WAN with multimode 4G LTE, 3.7G, 3.5G, 3G and 2G speeds
SFP for copper and fiber options at 100 Mbps Fast Ethernet and 1000 Mbps Gigabit Ethernet speeds
LAN Interface:
4 x 10/100/1000 Gigabit Ethernet ports with option for 30W of PoE/PoE+
WiFi interface:
2×2 (2.4GHz) 802.11n MIMO and 2×2 (5GHz) 802.11n MIMO
Up to 300 Mbps data rate per radio
Autonomous and Universal modes
Serial interface:
1 RS-232 (DTE) and 1 RS-232/RS-485 (DCE)
Supports asynchronous modes
Environmental operating range:
-40° to 140°F (-40° to 60°C) in a sealed NEMA cabinet with no airflow
-40° to 158°F (-40° to 70°C) in a vented cabinet with 40 lfm of air
-40° to 167°F (-40° to 75°C) in a forced air enclosure with 200 lfm of air
Ссылка на сайт производителя:
https://www.cisco.com/c/en/us/products/collateral/routers/829-industrial-router/datasheet-c78-734981.html
